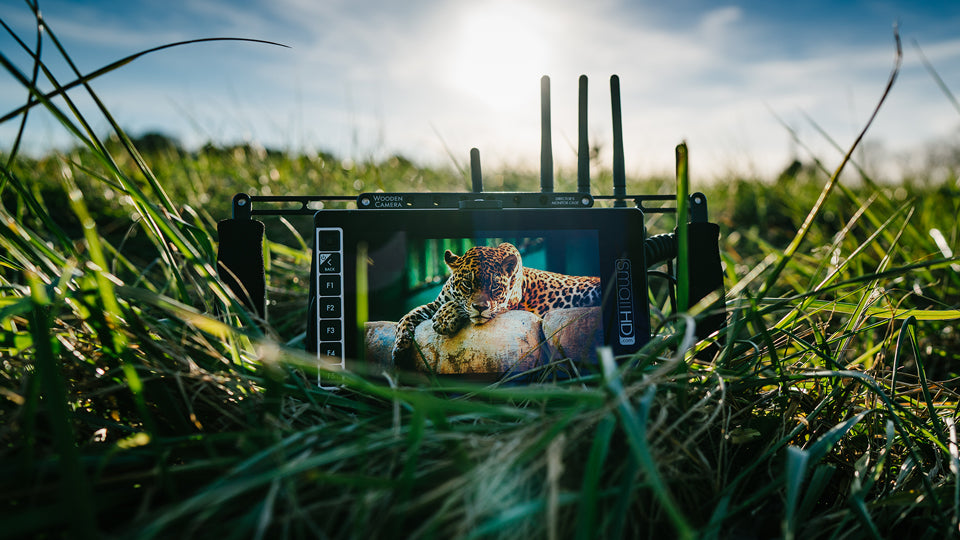

703 UltraBright On-Camera Monitor
1080p 7-inch LCD Monitor with 2200 nits Brightness
The Brightest 7-inch monitor available with HDR Preview, Waveform, 3D LUT support and 12v Lemo power
Model: MON-703U
Input: 2-SDI, HDMI
Output: SDI, HDMI
Display: 7-inch, 1920x1080, 2200nits, Gorilla Glass
Power Consumption: 13 watts
Weight: 26 oz
Display
| Panel Type | LTPS LCD |
| Size Diagonal | 7.02 |
| Resolution | 1920 x 1080 |
| Pixel Density (PPI) | 323 ppi |
| Aspect Ratio | 16:9 |
| Active Area | 7.02 |
| Brightness | 2200 nits |
| Contrast | 1200:1 |
| Color Gamut | 100% Rec 709 |
| Color Depth | 10-Bit Color Intelligence Engine |
| Viewing Angle | 178 Degrees (CR<10) |
| Backlight Type | White LED |
| Adjustable Backlight | Yes |
| Temperature Adaptive Color |
Viewfinder (EVF)
| Diopter Range | |
| Effective Viewing Distance | |
| Variable Field of View | |
| Height | |
| Width | |
| Depth | |
| Weight | |
| Construction Material |
Input Signal Types/Formats
| 3G-SDI | YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i60, 1080i59.94, 1080i50 |
| HD-SDI | YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98 |
| SD-SDI | YCC 4:2:2 @ 10-bits: 480i29.97, 576i25 |
| HDMI | YCC 4:2:2 @ 8 bits, 8/10/12 bit color in RGB & YCC 4:4:4: 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98,1080i60, 1080i59.94, 1080i50, 1080i30, 1080i29.97, 1080i25, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p120, 480p119.88, 480p60, 480p59.94, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 480i30, 480i29.97, 480i24, 480i23.98, 576i200, 576i100, 576i50, 576i25 |
| Component | |
| Composite | |
| Audio | HDMI & SDI - Monitor through Speakers in Front Bezel or Through Headphone Jack - Metering up to 8 channels |
Output Signal Types/Formats
| 3G-SDI | YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i60, 1080i59.94, 1080i50 |
| HD-SDI | YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98 |
| SD-SDI | YCC 4:2:2 @ 10-bits: 480i29.97, 576i25 |
| HDMI | YCC 4:2:2 @ 8 bits, 8/10/12 bit color in RGB & YCC 4:4:4: 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98,1080i60, 1080i59.94, 1080i50, 1080i30, 1080i29.97, 1080i25, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p120, 480p119.88, 480p60, 480p59.94, 576p100, 576p50, 480i240, 480i239.76, 480i120, 480i119.88, 480i60, 480i59.94, 480i30, 480i29.97, 480i24, 480i23.98, 576i200, 576i100, 576i50, 576i25 |
| Component | |
| Composite | |
| Audio | HDMI & SDI - Incoming Audio Stream is sent downstream via HDMI or SDI connection |
Wireless
| Video Inputs | |
| Video Outputs | |
| SDI Ancillary Data | |
| Color Sampling | |
| Delay Tx To Rx | |
| Supported Resolutions | |
| Video Compression | |
| Audio Compression | |
| HTTP Interface | |
| Configuration Interfaces | |
| Switches | |
| Desktop App | |
| USB Interface | |
| Wireless Network | |
| RF Channel Selection | |
| Encryption | |
| RF Power | |
| Range | |
| Unicast Multicast | |
| Noise Rejection |
Connector Type
| SDI | 1x 3g Input, 1x 3g Output |
| HDMI | 1x Input, 1x Output |
| Component | Not Supported |
| Composite | Not Supported |
| Audio | 1x ⅛” Headphone Jack |
| Power In | 2x Locking LEMO 2-pin Connectors: 1 for Power Input, 1 for Power distribution to an external device (Requires Power Input) |
| Power Out | |
| USB | 1x Micro USB |
Controls
| Primary Control Interface | Joystick Navigation, Dedicated Back/Power Button. 5 Additional User Assignable Function Buttons |
| Record/Capture | |
| User Defined Functions | |
| RF Wireless Remote / External Control | |
| USB Remote / External Control |
Data I/O
| Storage | SD Card for LUTs, Captured Images, Image Overlays, Firmware Upgrades, Profile Saving. |
| USB | USB port supports storage devices for LUTs, Captured Images, Image Overlays, Profile Saving. |
| Wireless | |
| Wifi |
Power
| Connector Type | 2x Locking LEMO 2-pin Connectors: 1 for Power Input, 1 for Power distribution to an external device (Requires Power Input) |
| Voltage | With DV Battery Plate: 6.0 - 8.4V 7.2V Nominal With High Voltage Battery Plate: 12 - 34V 14.4V Nominal With Lemo Input: 12 - 34V Max |
| Power Consumption | TBD |
| Battery Plate Included | |
| Recommended Power Supply | Included |
| Overload Protection | Yes |
| Smart Battery Compliant | |
| Battery Types | |
| Battery Chemistry | |
| Output Voltage (VDC) | Mirrors Input Voltage |
| Battery Capacity (mAh) | |
| Battery Charging Time (hours) |
Environmental
| Compliance | FCC, IC, CE, RoHS |
| Operating Temperature | 0 - 100 degrees F |
| Storage Temperature | -4 - 120 degrees F |
| Screen Protection | AR Coated Gorilla Glass Optical Bonding on Panel |
| Height | 4.88 |
| Width | 8.38 |
| Depth/Length | 1.13 |
| Weight (Item Only without battery) | 26.4 |
| Weight (Packaged) | 37 |
| Mount Points | 1 ¼”-20 Thread on Top of Monitor, 1x ¼”-20 Thread on Bottom of Monitor |
| Note: |
Cable
| Cable Ends | |
| Pin Out |
Software
| Pixel Zoom (type) | 2x & 4x Zoom with smooth pan via joystick |
| Frame Guides | Yes: Preset Aspect Ratios & Customizable |
| DSLR Scale | Canon 5DMkii & Canon 7D |
| Custom Scale | Yes (Underscan Only) |
| Anamorphic De-Squeeze | Yes: 1.33x, 1.5x, 1.66x, 2.0x |
| Image Rotate(Manual/Automatic) | Yes - Automatic or Manual Control |
| Image Flip (Manual/Automatic) | Yes - Automatic or Manual Control |
| Cross Conversion | Yes: HDMI → SDI & SDI → HDMI |
| Focus Assist (Colors) | Yes - User Adjustable Color Style and Intensity |
| Peaking | Yes - User Adjustable Intensity |
| False Color | Yes - Rainbow & Arri Style |
| Zebra | Yes - Dual - User Configurable |
| Waveform | Yes - Luma & RGB Style, Fully User Customizable w/ Region of Interest Highlighting |
| Vectorscope | Yes |
| PIP | |
| RGB Parade | Yes - Fully User Customizable |
| Histogram | Yes - Luma & RGB Style |
| Horizon Indicator | |
| Image Capture | Yes - With Dedicated Button |
| Dailies Recording/Playback | |
| Master Recording | |
| Wifi Streaming | |
| Custom LUTS | Yes - Loadable as Looks on Pages or as Systemwide Color Calibration via the settings menu |
| LUT Creation | |
| LUT Downstream | Yes - Available on SDI 1 or HDMI Out. Applied on Output Preview Page. |
| LUT Import | via SD Card or USB Storage Device |
| Onion Skinning | |
| Image Overlay | Yes with Opacity Slider and Blink Setting |
| Blue Only | |
| Firmware | User Upgradable |
| Audio Meters | Yes - HDMI & SDI up to 8 channel |
