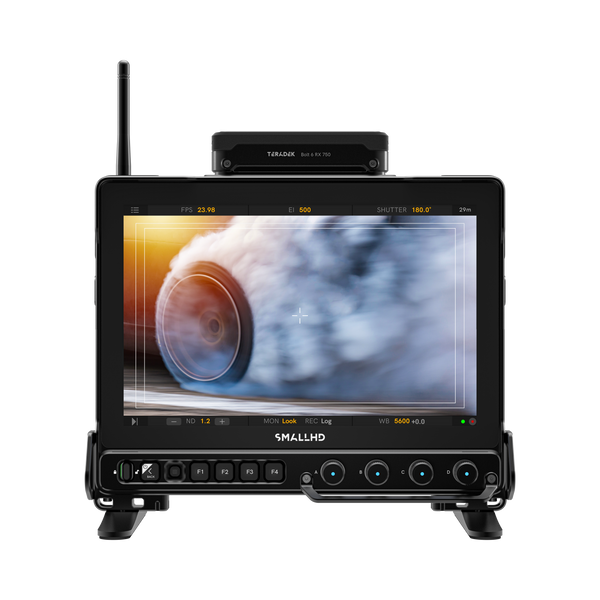

703 Bolt Wireless Monitor
7-inch Full HD Monitor with Built-in Wireless HD Receiver
3000nit daylight viewable monitor/receiver that's compatible with Teradek Bolt 500, 1000, and 3000 transmitters
Model: MON-703BOLT
Display: 7-inch, 1920x1080, 3000nits
Input: 2x SDI, 1x Wireless
Output: 1x SDI
Display
Panel Type | IPS LCD |
Size Diagonal | 7.02 |
Resolution | 1920 x 1080 |
Pixel Density (PPI) | 323 ppi |
Aspect Ratio | 16:9 |
Active Area | 7.02 |
Brightness | 3000 |
Contrast | 1150:1 |
Color Gamut | 100% Rec 709 |
Color Depth | 10-Bit Color Intelligence Engine |
Viewing Angle | 178 Degrees (CR<10) |
Backlight Type | White LED |
Adjustable Backlight | |
Temperature Adaptive Color |
Viewfinder (EVF)
Diopter Range | |
Effective Viewing Distance | |
Variable Field of View | range |
Height | |
Width | |
Depth | |
Weight | |
Construction Material |
Input Signal Types/Formats
3G-SDI | YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i60, 1080i59.94, 1080i50 |
HD-SDI | YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98 |
SD-SDI | YCC 4:2:2 @ 10-bits: 480i29.97, 576i25 |
HDMI | |
Component | |
Composite | |
Audio | SDI - Monitor through Headphone Jack - Metering up to 8 channels |
Output Signal Types/Formats
3G-SDI | YCC 4:2:2 @ 10-bits: 1080p60, 1080p59.94, 1080p50, 1080i60, 1080i59.94, 1080i50 |
HD-SDI | YCC 4:2:2 @ 10-bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98 |
SD-SDI | YCC 4:2:2 @ 10-bits: 480i29.97, 576i25 |
HDMI | |
Component | |
Composite | |
Audio | SDI - Incoming Audio Stream is sent downstream via SDI connection |
Wireless
Video Inputs | |
Video Outputs | |
SDI Ancillary Data | Supports transmitting metadata, timecode, and start/stop flags from certain camera manufacturers. Please refer to: https://support.teradek.com/hc/en-us/articles/217446087 |
Color Sampling | For SDI: YCbCr 4:2:2, 10-bit |
Delay Tx To Rx | |
Supported Resolutions | 1080p60/59.94/50/30/29.97/25/24/23.98 1080psf30/29.97/25/24/23.98 1080i60/59.94/50 720p60/59.94/50 480i(NTSC)/576i(PAL) |
Video Compression | Visually lossless |
Audio Compression | 48KhZ 24-bit PCM |
HTTP Interface | |
Configuration Interfaces | |
Switches | On/Off |
Desktop App | |
USB Interface | |
Wireless Network | 5GHz (20&40Mhz), DFS Frequencies Available |
RF Channel Selection | Auto only (NOT configurable) |
Encryption | AES-128 |
RF Power | 15dBm EIRP |
Range | Up to 500ft line of sight |
Unicast Multicast | |
Noise Rejection | Can coexist with WiFi and 5GHz cordless phones |
Connector Type
SDI | 2x 3g Input, 1x 3g Output |
HDMI | |
Component | |
Composite | |
Audio | 1x ⅛” Headphone Jack |
Power In | 1x Locking LEMO 2-pin Connectors Power Input |
Power Out | |
USB | 1x Proprietary Locking LEMO 5-pin Connectors Power Input |
Controls
Primary Control Interface | Joystick Navigation, Dedicated Back/Power Button. 5 Additional User Assignable Function Buttons |
Record/Capture | |
User Defined Functions | |
RF Wireless Remote / External Control | |
USB Remote / External Control |
Data I/O
Storage | SD Card for LUTs, Captured Images, Image Overlays, Firmware Upgrades, Profile Saving. |
USB | USB port supports storage devices for LUTs, Captured Images, Image Overlays, Profile Saving. |
Wireless | |
Wifi |
Power
Connector Type | 1x Locking LEMO 2-pin Connectors Power Input |
Voltage | With DV Battery Plate: 6.0 - 8.4V 7.2V Nominal With High Voltage Battery Plate: 12 - 34V 14.4V Nominal With Lemo Input: 12 - 34V Max |
Power Consumption | 16.7W Max Brightness (3K+ nits) w/ Wireless OFF + SDI Video Signal, 7.4W Studio Mode (200 nits) w/Wireless OFF + SDI Video Signal | 23.3W Max Brightness (3K+nits) w/ Wireless ON + Wireless Video Signal/13.8W Studio Mode (200 nits) w/ Wireless ON + Wireless Video Signal |
Battery Plate Included | |
Recommended Power Supply | Included: LEMO to D-Tap Cable |
Overload Protection | Yes |
Smart Battery Compliant | |
Battery Types | |
Battery Chemistry | |
Output Voltage (VDC) | |
Battery Capacity (mAh) | |
Battery Charging Time (hours) |
Environmental
Compliance | FCC, IC, CE, RoHS |
Operating Temperature | 0 - 100 degrees F |
Storage Temperature | -4 - 120 degrees F |
Screen Protection | AR Coated Gorilla Glass Optical Bonding on Panel |
Height | 9 |
Width | 1.21 |
Depth/Length | 8.4 |
Weight (Item Only without battery) | 32 |
Weight (Packaged) | 78 |
Mount Points | 1x ¼”-20 Thread on left and right side of Monitor, 7x ¼”-20 Thread on Bottom of Monitor, 7x ¼”-20 Thread on Top of Monitor |
Note: | 5-inches high without antennas, 9.0 with antennas |
Cable
Cable Ends | |
Pin Out |
Software
Pixel Zoom (type) | 2x & 4x Zoom with smooth pan via joystick |
Frame Guides | Preset Aspect Ratios & Customizable |
DSLR Scale | Canon 5DMkii & Canon 7D |
Custom Scale | Underscan Only |
Anamorphic De-Squeeze | 1.33x, 1.5x, 1.66x, 2.0x |
Image Rotate(Manual/Automatic) | Automatic or Manual Control |
Image Flip (Manual/Automatic) | Automatic or Manual Control |
Cross Conversion | |
Focus Assist (Colors) | User Adjustable Color Style and Intensity |
Peaking | User Adjustable Intensity |
False Color | Spectrum, Arri Style and Fully User Customizable |
Zebra | Dual - User Configurable |
Waveform | Luma & RGB Style, Fully User Customizable w/ Region of Interest Highlighting |
Vectorscope | Yes |
PIP | |
RGB Parade | Fully User Customizable |
Histogram | Luma & RGB Style |
Horizon Indicator | |
Image Capture | With Dedicated Button |
Dailies Recording/Playback | |
Master Recording | |
Wifi Streaming | |
Custom LUTS | Loadable as Looks on Pages or as Systemwide Color Calibration via the settings menu |
LUT Creation | |
LUT Downstream | Available on SDI Out. Applied on Output Preview Page. |
LUT Import | Via SD Card or USB Storage Device |
Onion Skinning | |
Image Overlay | Opacity Slider and Blink Setting |
Blue Only | |
Firmware | |
Audio Meters | Up to 8 channel |
