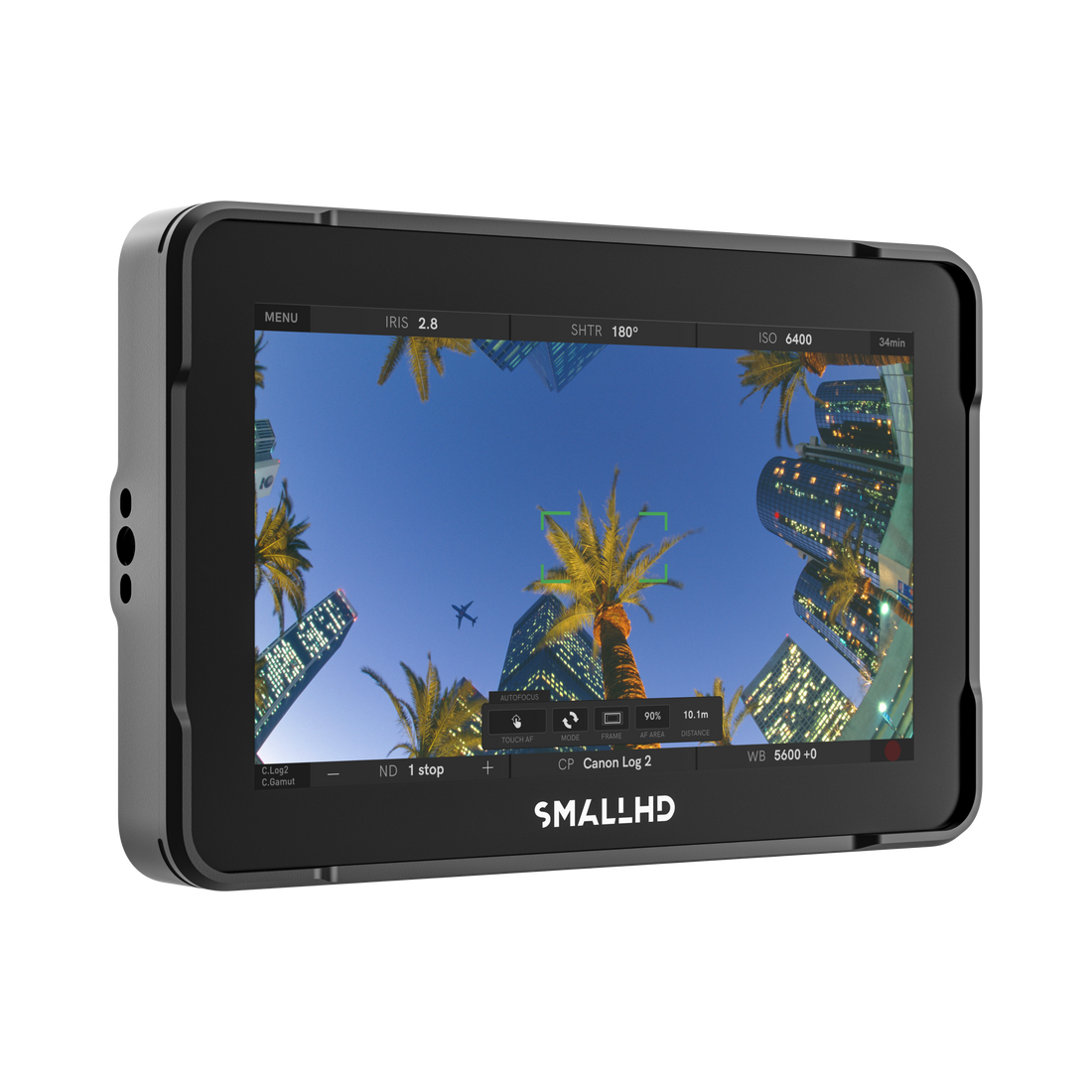

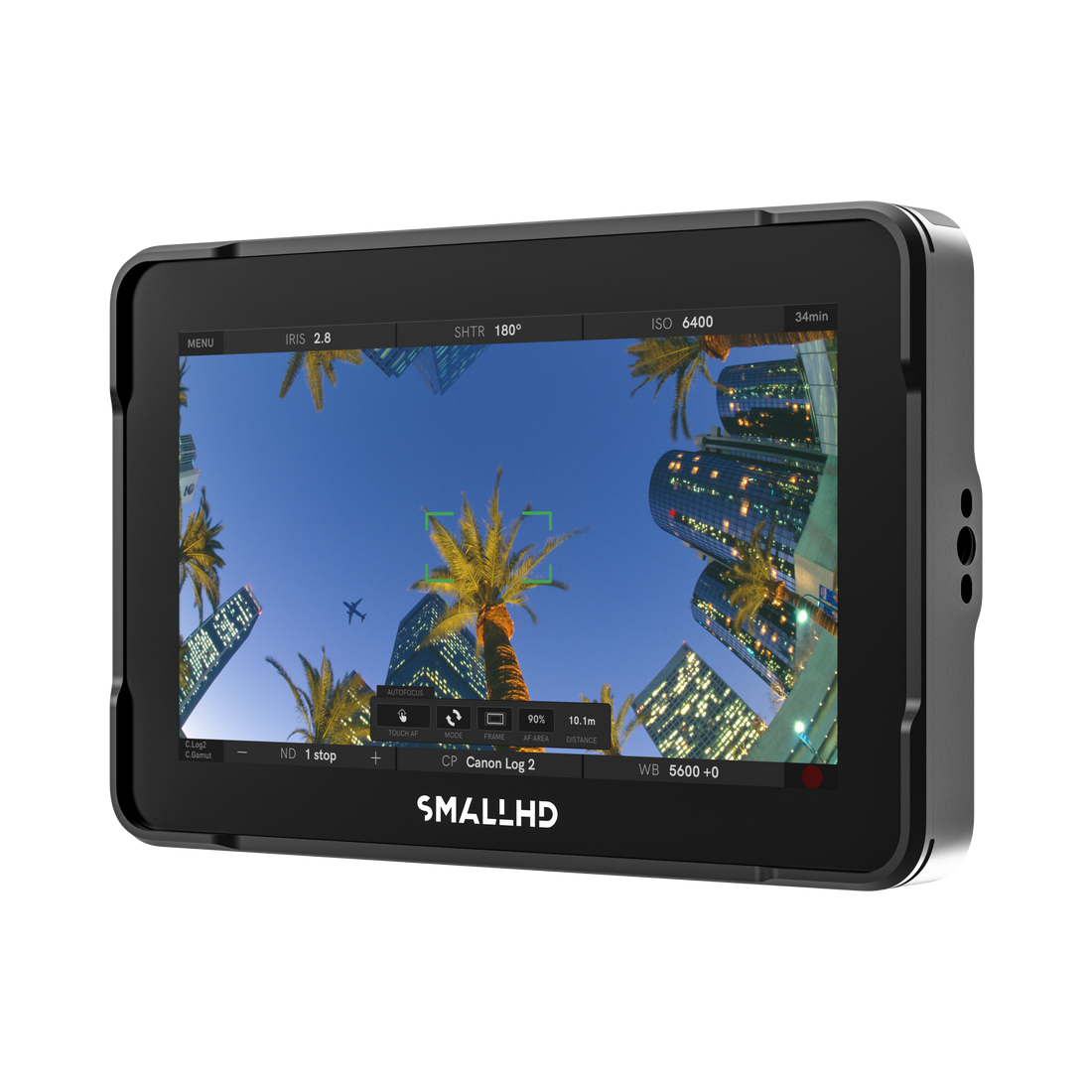

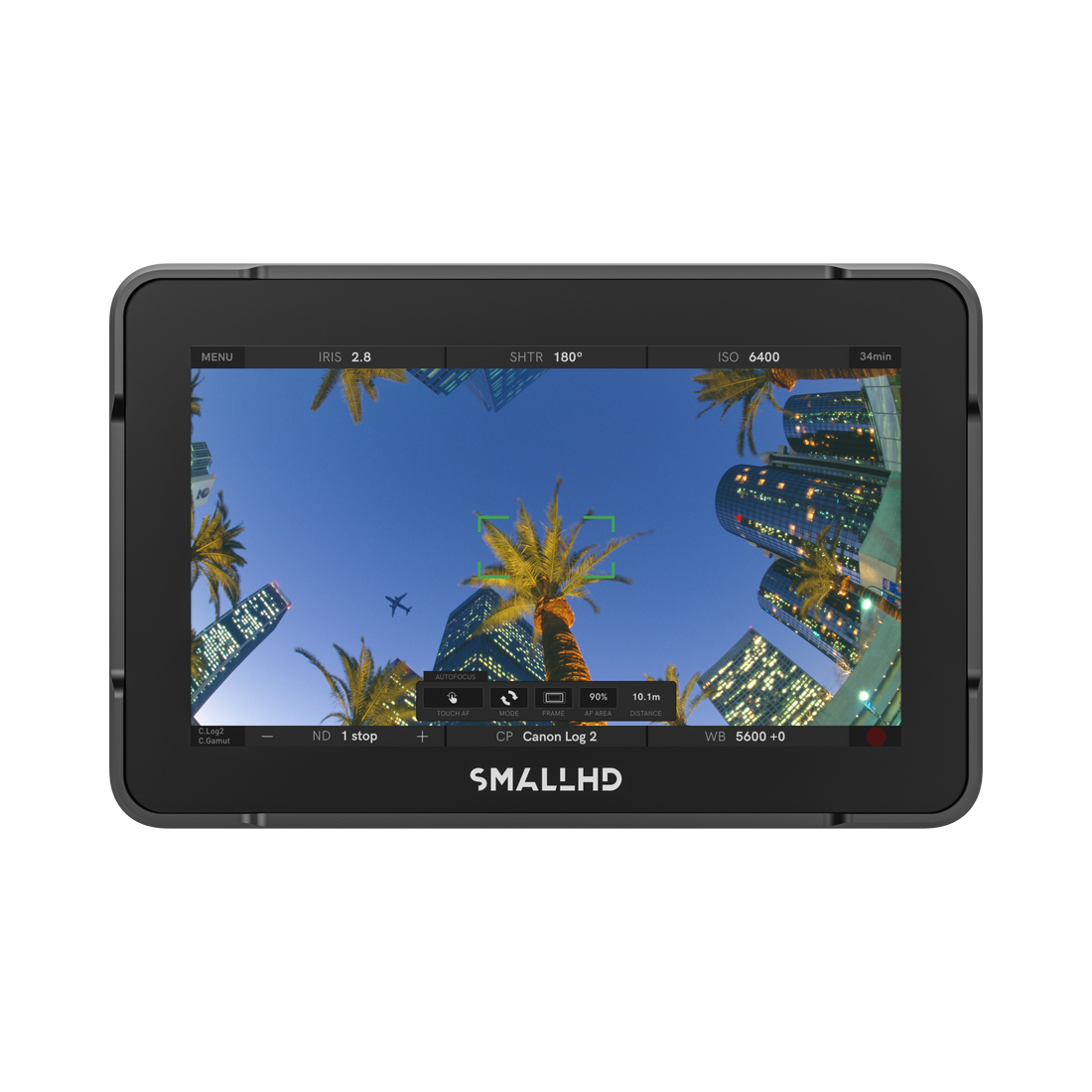

Focus 504 is a compact 5-inch monitor featuring a 1920×1080 touchscreen display with 1000nits brightness and 100% Rec.709 color coverage. Designed for lightweight camera builds, handheld operation, and mobile productions, it combines professional monitoring tools with flexible connectivity in a portable form factor.

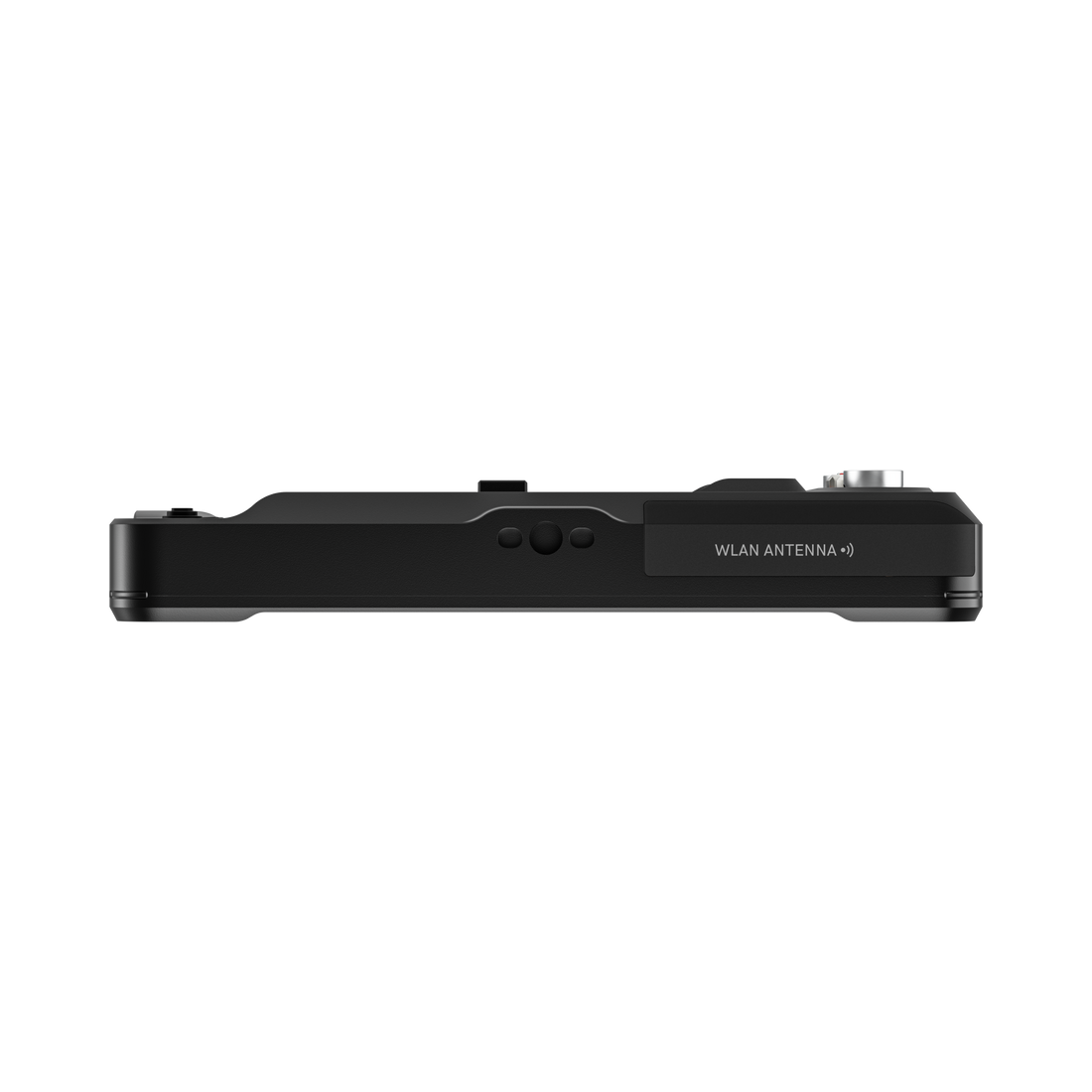

The monitor includes both 3G-SDI and HDMI 2.0 input and output, making it easy to integrate into a wide range of camera systems. A locking USB-C port provides power, video, and communication, while two additional locking USB-C ports supply 5V/1.5A accessory power. Integrated 2.4 GHz Wi-Fi enables wireless Camera Control*.

Running PageOS software, Focus 504 provides access to professional monitoring features including customizable pages, exposure and focus assist tools, LUT support, and camera control. Compatible camera control licenses will be available for RED, Sony, ARRI, and Canon cameras, allowing operators to adjust supported camera settings directly from the monitor.

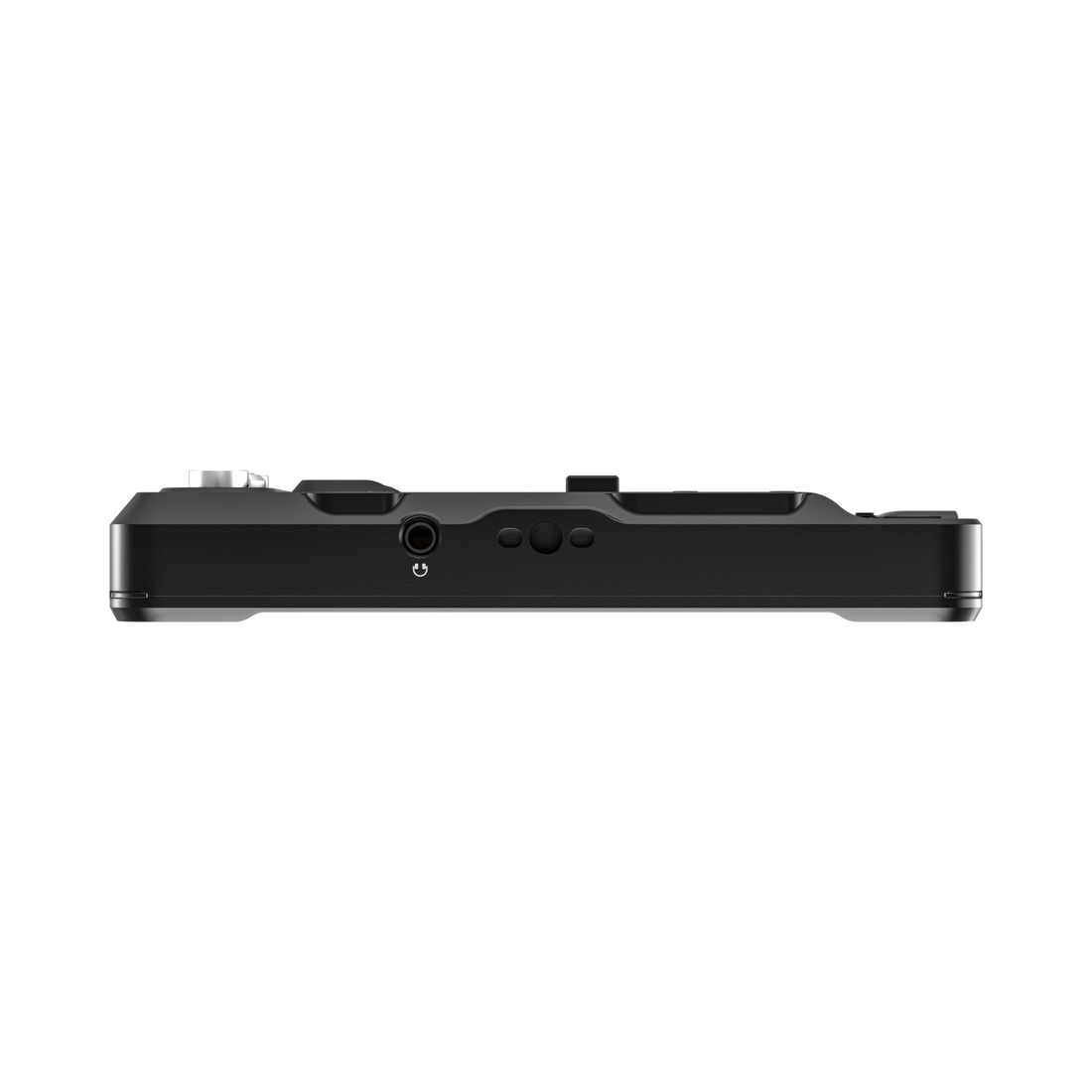

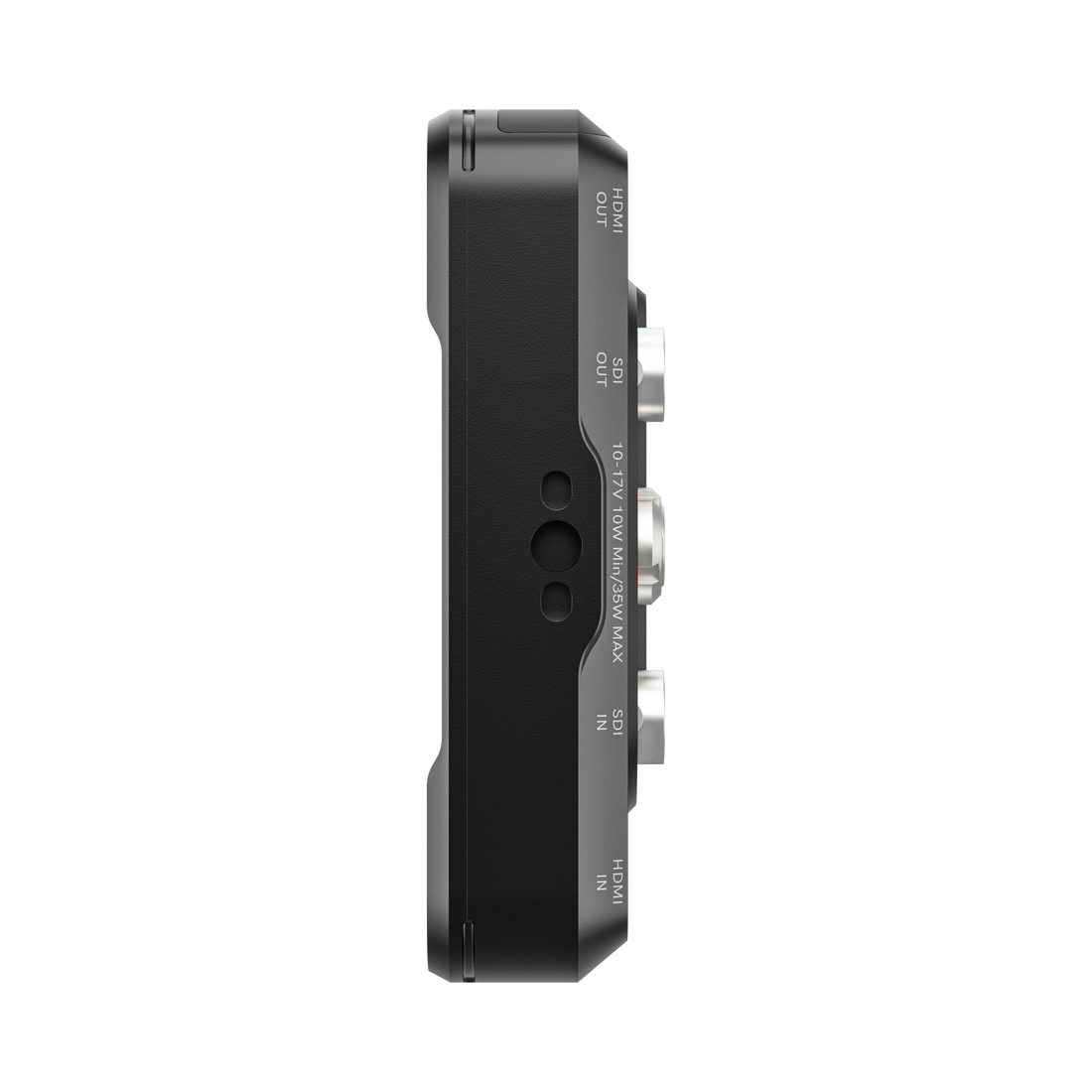

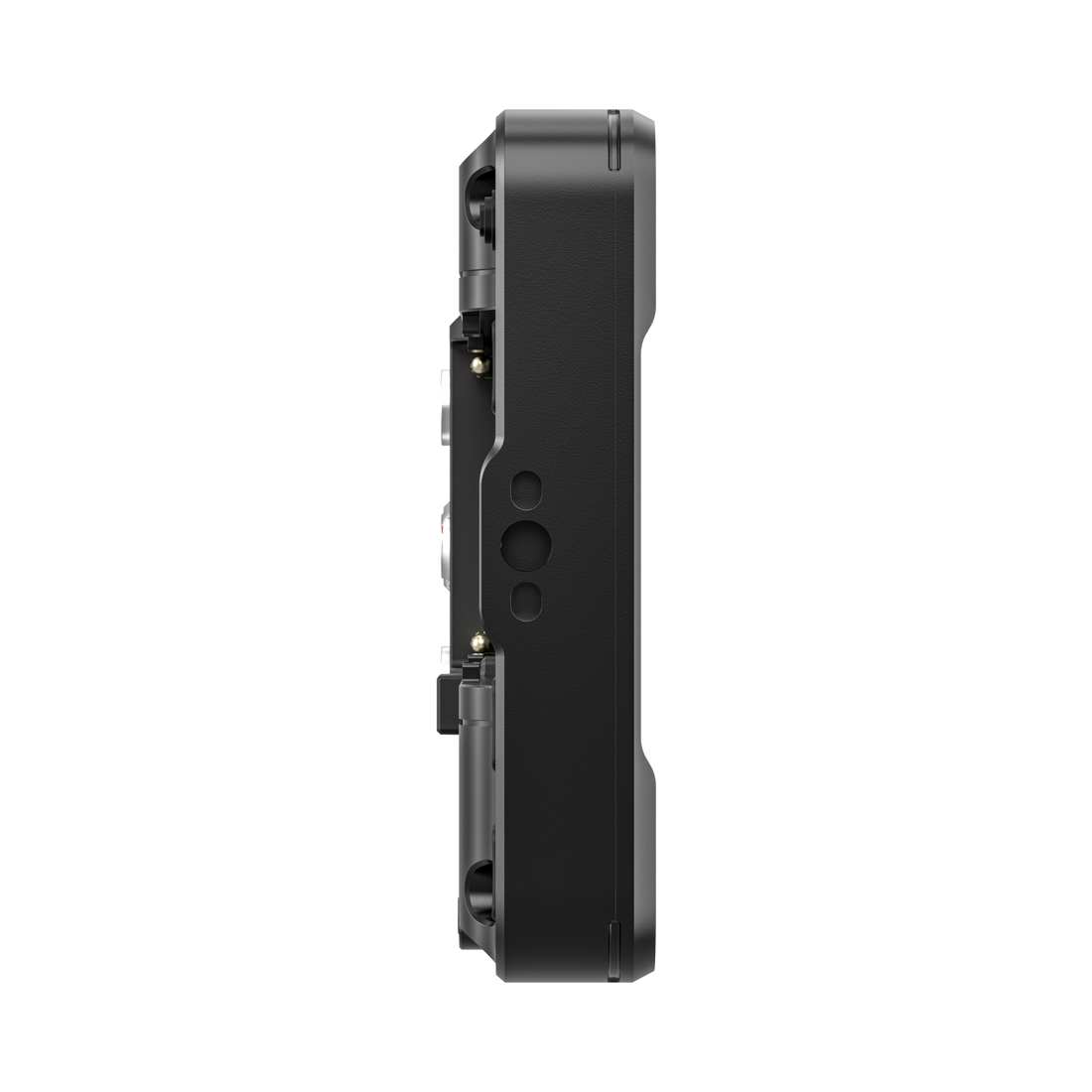

With four ¼"-20 mounting points featuring ARRI locating pins and a raised protective bezel, Focus 504 is designed for flexible mounting and reliable use in production environments where size, weight, and functionality are equally important.

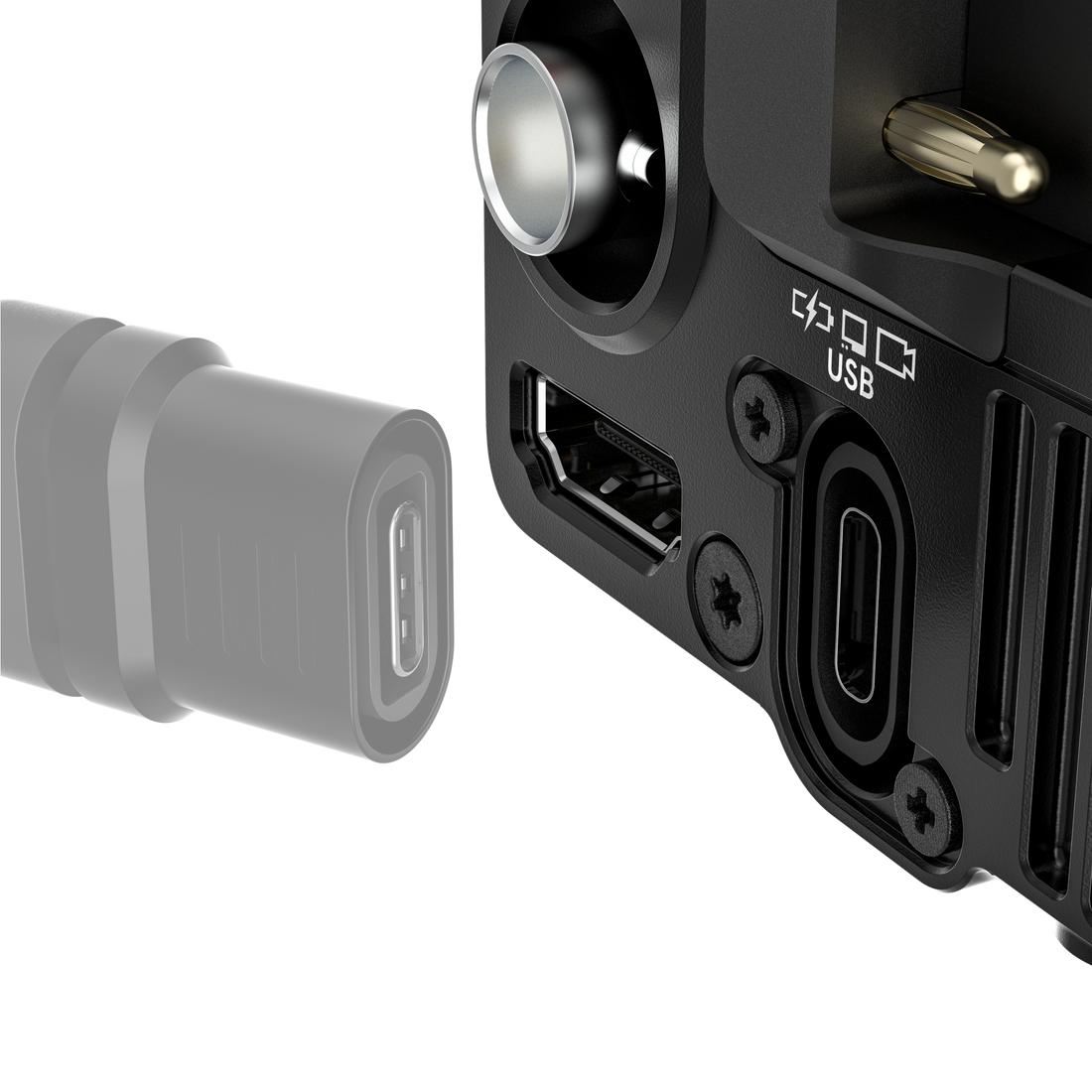

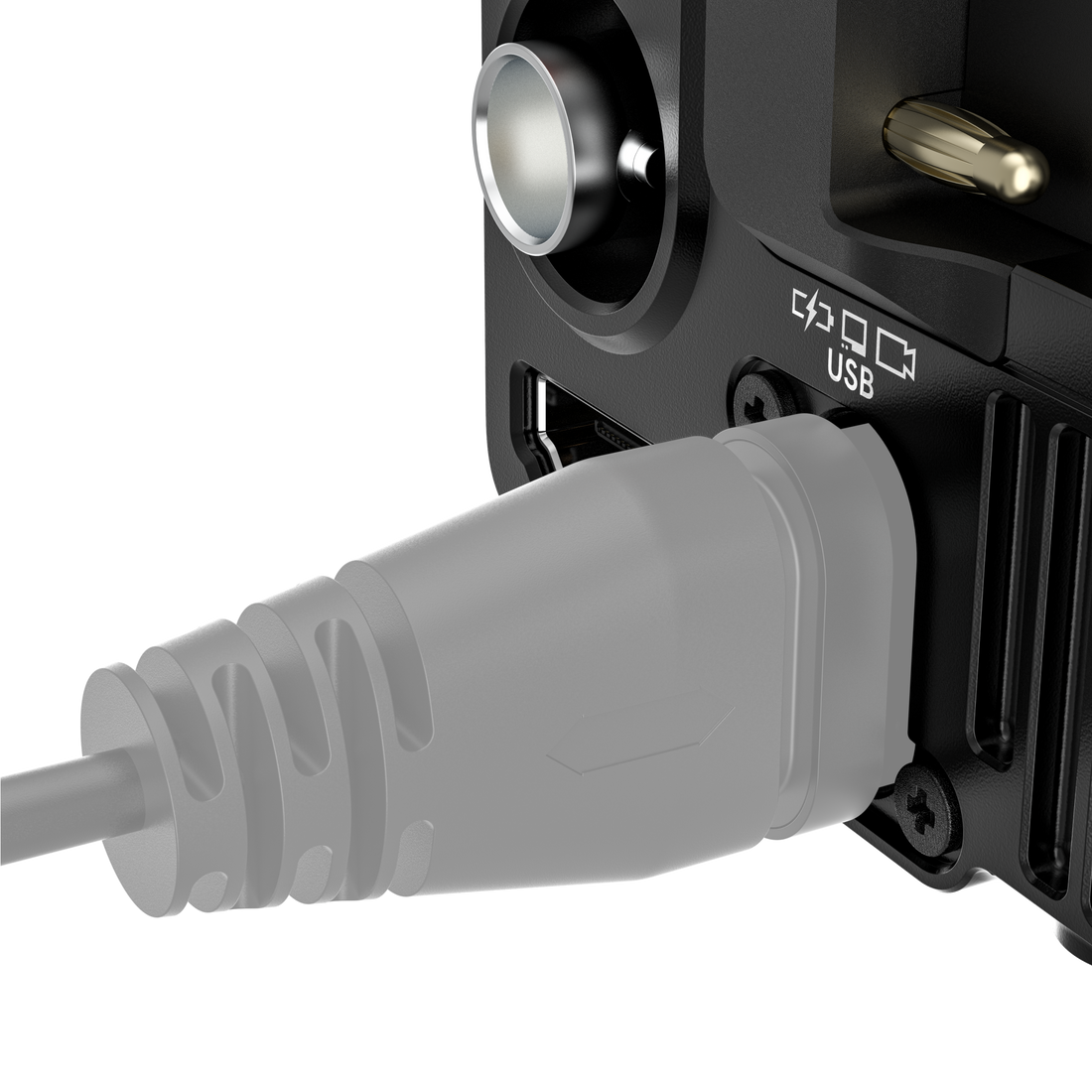

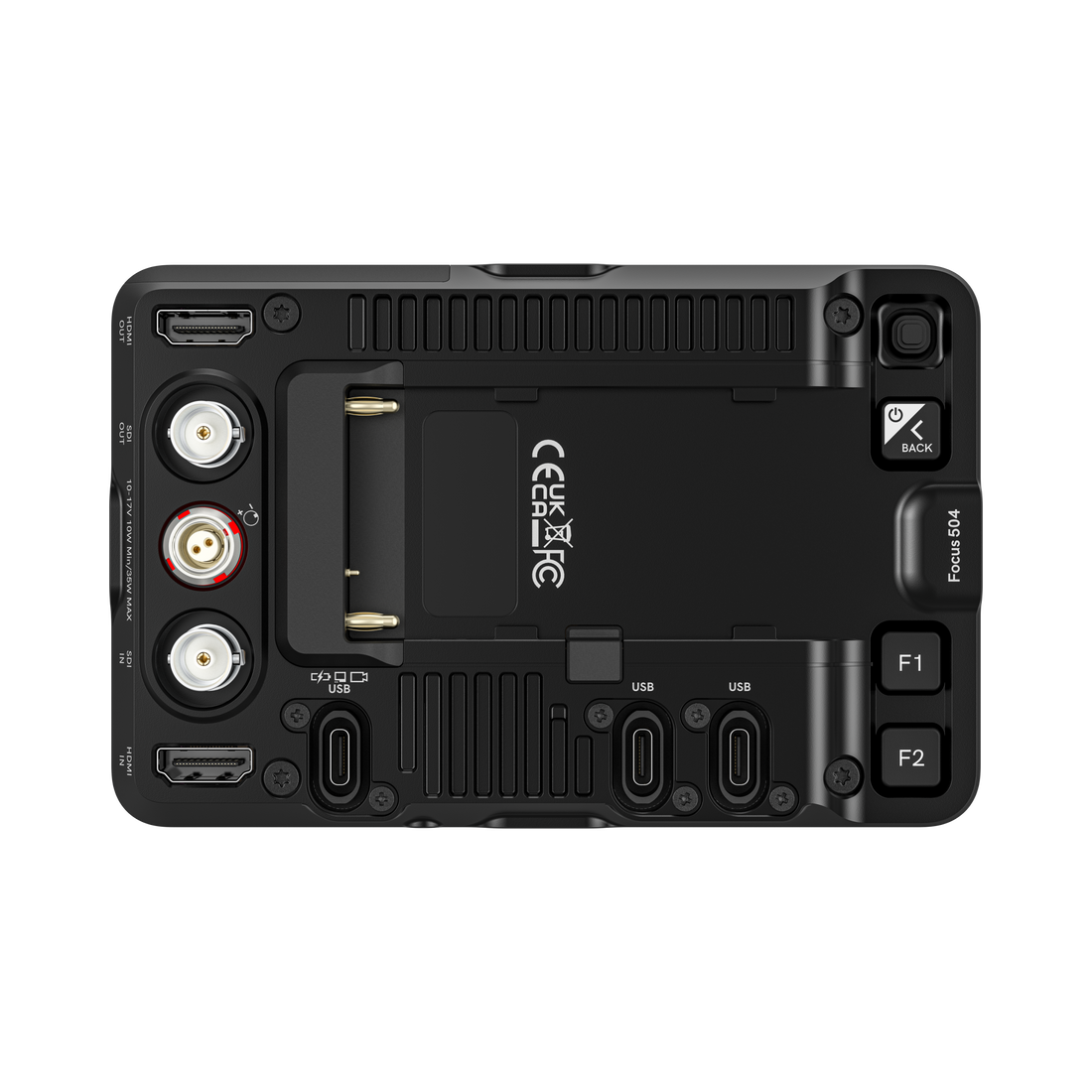

Focus 504 features three USB-C ports compatible with SmallHD locking cables. The PVC (Power, Video, Communication) port supports power input or output, DisplayPort Alt Mode video input, and USB data, depending on the connected device, cable, and firmware.

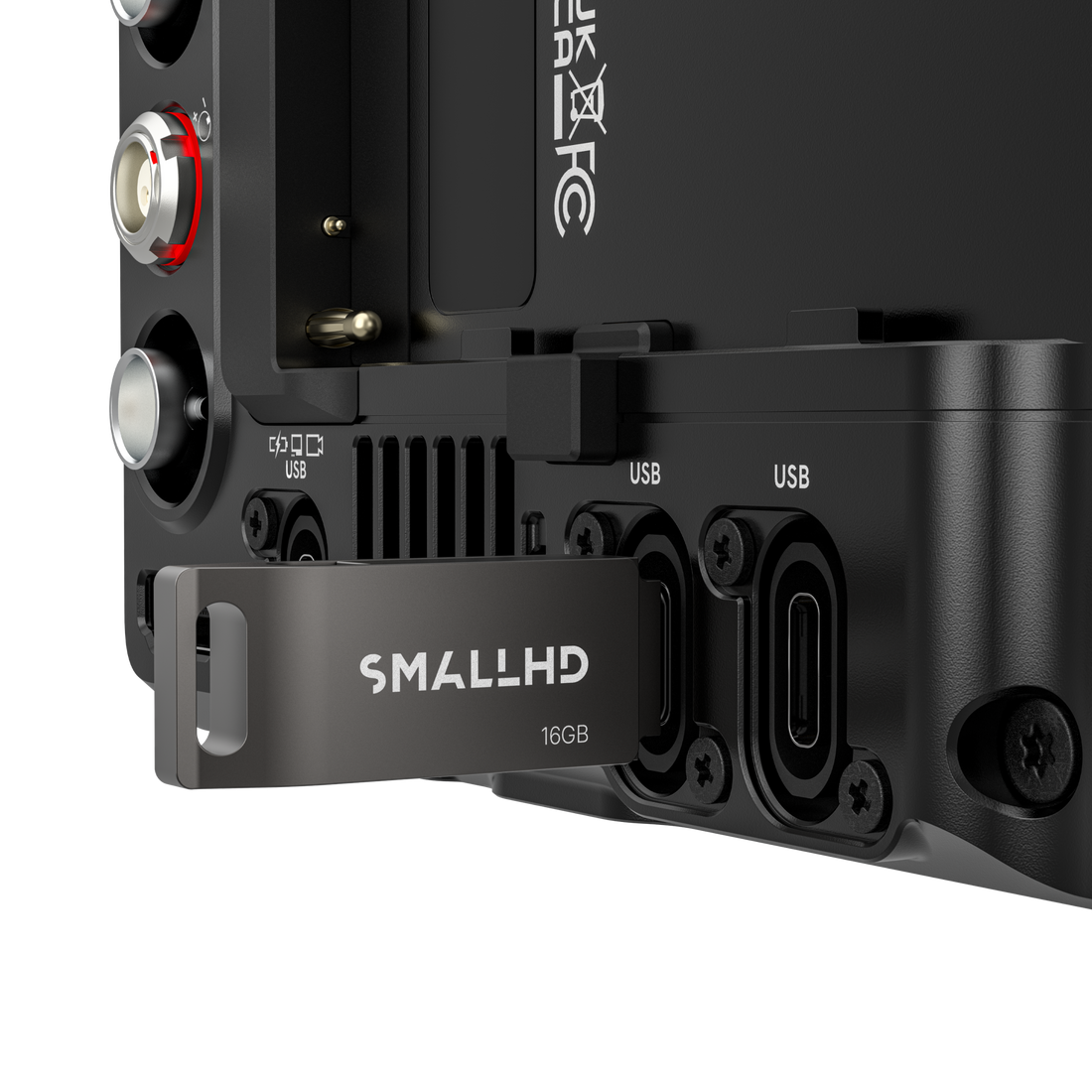

Two additional USB-C ports support USB data for camera control or firmware updates, LUTs and screen grabs on a compatible flash drive.

*Camera control functionality coming soon. Licenses are sold separately.
