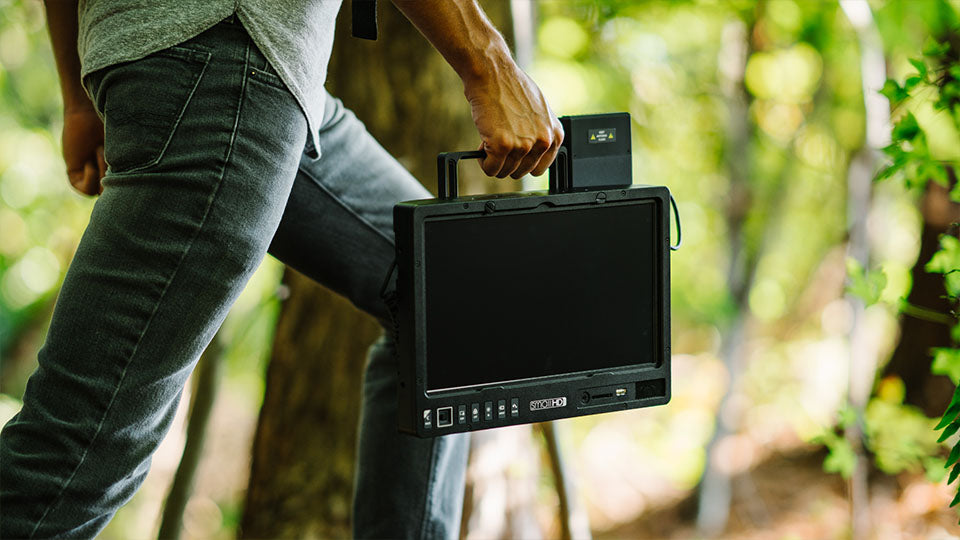

1303 HDR Production Monitor
Full HD 13-inch LCD Monitor with 1500 NITs Brightness
The image clarity required to pull focus outdoors.
Model: MON-1303HDR
Input: 2x SDI, HDMI
Output: 2x SDI, HDMI
Display: 13-inch, 1920x1080, 1500nits with HDR Preview
Display
Panel Type | IPS |
Size Diagonal | 13 |
Resolution | 1920x1080 |
Pixel Density (PPI) | 170 PPI |
Aspect Ratio | 16:9 |
Active Area | 11.59” x 6.52” |
Brightness | 1500 nits |
Contrast | 1140:1 |
Color Gamut | 100% Rec.709 |
Color Depth | 10 bit |
Viewing Angle | 178 Deg. |
Backlight Type | LED |
Adjustable Backlight | Yes |
Temperature Adaptive Color | No |
Viewfinder (EVF)
Diopter Range | |
Effective Viewing Distance | |
Variable Field of View | |
Height | |
Width | |
Depth | |
Weight | |
Construction Material |
Input Signal Types/Formats
3G-SDI | YCC 4:2:2 @ 10 bits: 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100 |
HD-SDI | YCC 4:2:2 @ 10 bits: 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psF30, 1080psF29.97, 1080psF25, 1080psF24, 1080psF23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98 |
SD-SDI | 480i29.97, 576i25 |
HDMI | Supports YCC 4:2:2 @ 8 bits, 8/10/12 bit color in RGB & YCC 4:4:4: 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98,1080i120, 1080i119.88, 1080i100, 1080i60, 1080i59.94, 1080i50, 720p120, 720p119.88, 720p100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p120, 480p119.88, 480p100, 480p60, 480p59.94, 576p100, 576p50 |
Component | Not Supported |
Composite | Not Supported |
Audio | HDMI & SDI Monitor through Speakers in Front Bezel or through Headphone Jack Metering up to 8 channels |
Output Signal Types/Formats
3G-SDI | YCC 4:2:2 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, |
HD-SDI | YCC 4:2:2 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psf30, 1080psf29.97, 1080psf25, 1080psf24, 1080psf23.98, 1080i60, 1080i59.94, 1080i50, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98 all at 8 bits |
SD-SDI | Not Supported |
HDMI | Supports YCC 4:2:2@ 8 bits, RGB & YCC 4:4:4 @ 8 bits: 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98,1080i120, 1080i119.88, 1080i100, 1080i60, 1080i59.94, 1080i50, 720p120, 720p119.88, 720p100, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p120, 480p119.88, 480p100, 480p60, 480p59.94, 576p100, 576p50, 480i120, 480i119.88, 480i60, 480i59.94, 576i100, 576i50 |
Component | Not Supported |
Composite | Not Supported |
Audio | Audio sent downstream unless a LUT is loaded on the output page which disables Audio out. |
Wireless
Video Inputs | |
Video Outputs | |
SDI Ancillary Data | |
Color Sampling | |
Delay Tx To Rx | |
Supported Resolutions | |
Video Compression | |
Audio Compression | |
HTTP Interface | |
Configuration Interfaces | |
Switches | |
Desktop App | |
USB Interface | |
Wireless Network | |
RF Channel Selection | |
Encryption | |
RF Power | |
Range | |
Unicast Multicast | |
Noise Rejection |
Connector Type
SDI | 2x 3G Inputs, 2x 3G Outputs |
HDMI | 1x Input, 1x Output |
Component | Not Supported |
Composite | Not Supported |
Audio | 1x Headphone Jack on Front of Monitor |
Power In | 1x XLR 4pin Input 12-34VDC, 1x Lemo Output 12VDC @ 4A Max |
Power Out | 1x XLR 4pin Input 12-34VDC, 1x Lemo Output 12VDC @ 4A Max |
USB | 1x Front USB2, 2x Rear USB2 |
Controls
Primary Control Interface | Joystick Navigation, Dedicated Back Button. Additional Dedicated buttons for: Image Capture; LUT Selection; Backlight Level; Input Selection; Scopes Toggle. |
Record/Capture | Dedicated Image Capture Button on Front Bezel |
User Defined Functions | |
RF Wireless Remote / External Control | |
USB Remote / External Control |
Data I/O
Storage | SD Card for LUTs, Captured Images, Image Overlays, Profile Saving & Loading, Firmware Upgrades |
USB | 1 Front & 2 Rear USB Ports for power (1.5A shared total), LUT Loading, Profile Saving & Loading |
Wireless | |
Wifi |
Power
Connector Type | 1x XLR 4-pin 12 - 34VDC IN; 12V Lemo 2-pin OUT 4A Max |
Voltage | 12 - 34VDC |
Power Consumption | 25 - 39W |
Battery Plate Included | |
Recommended Power Supply | AC - DC Power Converter “Brick” Included with Monitor 110 - 240VAC 50 - 60 HZ INPUT; 15V - 6A OUTPUT |
Overload Protection | |
Smart Battery Compliant | |
Battery Types | Gold Mount / VMount via 4pin XLR Connector |
Battery Chemistry | |
Output Voltage (VDC) | 12V, 2A max via LEMO Connector |
Battery Capacity (mAh) | |
Battery Charging Time (hours) |
Environmental
Compliance | FCC, IC, CE, RoHS |
Operating Temperature | 32F - 100F |
Storage Temperature | 33F - 115F |
Screen Protection | Acrylic or Anti-Reflective Acrylic screen protetor available as an option |
Height | 9 |
Width | 13 |
Depth/Length | 2.88 |
Weight (Item Only without battery) | 128 |
Weight (Packaged) | 192 |
Mount Points | 2x ¼”-20 on Top, Left & Right sides; RapidRail - Cold Shoe style rails on rear of monitor |
Note: |
Cable
Cable Ends | |
Pin Out |
Software
Pixel Zoom (type) | 2x & 4x Zoom with smooth pan via joystick |
Frame Guides | Yes: Preset Aspect Ratios & Customizable |
DSLR Scale | Canon 5DMkii & Canon 7D |
Custom Scale | Yes: Underscan & Overscan |
Anamorphic De-Squeeze | Yes: 1.33x, 1.5x, 1.66x, 2.0x |
Image Rotate(Manual/Automatic) | Yes - Automatic or Manual |
Image Flip (Manual/Automatic) | Yes - Automatic or Manual |
Cross Conversion | Yes: HDMI → SDI & SDI → HDMI |
Focus Assist (Colors) | Yes User Adjustable Color and Intensity |
Peaking | Yes User Adjustable Intensity |
False Color | Yes Rainbow & Arri Style |
Zebra | Yes Dual User Configurable |
Waveform | Yes Luma & RGB Style, Fully User Customizable w/ Region of Interest Highlighting |
Vectorscope | Yes - with Optional Skintone line |
PIP | |
RGB Parade | Yes Fully User Customizable |
Histogram | Yes Luma & RGB Style |
Horizon Indicator | |
Image Capture | Yes With Dedicated Button |
Dailies Recording/Playback | |
Master Recording | |
Wifi Streaming | |
Custom LUTS | Yes Loadable by Page or as Systemwide Color Calibration |
LUT Creation | |
LUT Downstream | Yes Available on SDI 1 or HDMI Out |
LUT Import | Via SD Card or USB storage device |
Onion Skinning | |
Image Overlay | Yes with Intensity Slider and Blink Setting |
Blue Only | |
Firmware | User Upgradable. Compatible with 1303-1703-2403-3203 Firmware Version 1.1 and later |
Audio Meters | Yes HDMI & SDI up to 8 channel |
